pcb circuit board
PCB fabrication techniques are used to create the base for your circuit board. A pcb circuit board features layer pairs of dielectric material and metal conductors. For example, a standard multilayer printed circuit board may have two layers of glass-reinforced epoxy, more commonly known as FR-4, sandwiched between copper foil layers. During the assembly process, components connect through the conductive copper layers via holes called vias.

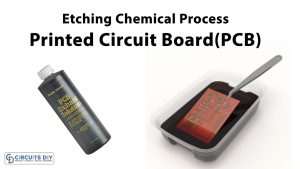

The first step in fabricating a pcb circuit board is to etch the copper. This removes the unneeded copper from the surface of the base material. The etching process exposes the copper to a solution that can be dissolved with water, which then reveals the circuit pattern. An engineer then cleans the exposed copper and applies a protective coating. The hardened coating prevents the etched surface from being damaged by solder or mechanical features attached to the board.
Next, the raw board will go through a series of processes to make it ready for the component assembly process. This includes a visual inspection to ensure the quality of the copper traces, which are typically very thin. The inspector will also check for signs of shorts, which are incorrect connections between points on the board.
What fabrication techniques are used in manufacturing pcb circuit board?
After the inspection, the board is drilled with holes for the vias and leaded components. The holes are then plated with copper, which increases the conductivity of those areas. This process is followed by deburring, which removes any raised metal edges that are called burrs. The finished circuit board then receives a surface finish, such as hot air solder leveling (HASL) or ENIG, to protect the exposed metal and prepare it for assembly.
The final step in pcb circuit board fabrication is lamination. The layer pairs of the board will be joined together using a sheet of prepreg, which is a fiberglass material impregnated with an epoxy resin that will melt under the heat and pressure of the lamination process. After the prepreg has cured, the copper layers and the non-conductive core materials will be bonded to each other.
Depending on the design, your pcb circuit board will have various additional steps that must be taken to ensure it is functional and safe to use. These include accounting for thermal effects when the circuit board is working, which means that it must not be too hot or too cold to function properly. Additionally, the design must consider the thermal spread of the different components to ensure that their temperature rise doesn’t exceed the limits of the board’s materials.
Finally, the pcb circuit board must be tested to ensure that it works as designed. If any defects are found, they must be corrected before the boards can be shipped to customers. This includes a thorough visual and automated optical inspection, which are critical to quality assurance. If the defects cannot be corrected, they will be discarded and the board will need to be made again. This will cost both time and money, so it is important to avoid any problems at the start of the process.
